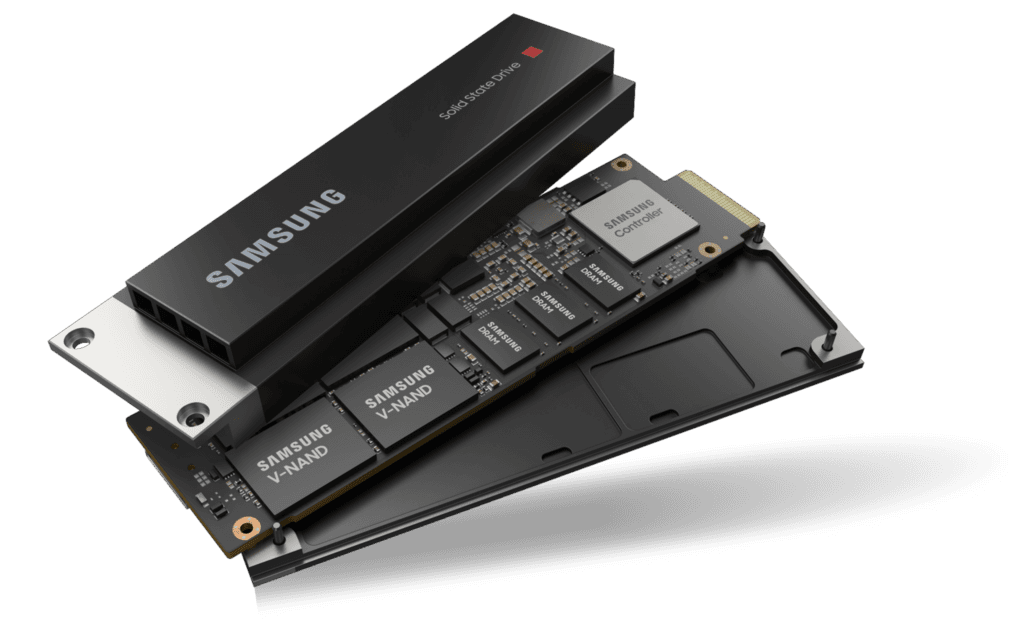

Samsung PM9D3a
3.84 TB PCIe 5.0 E1.S
Samsung's latest-generation enterprise NVMe SSD in the EDSFF E1.S form factor (9.5 mm). Up to 12,000 MB/s sequential read, power-loss protection and 1 DWPD — built for dense, fast data center storage nodes.
Plus 19% VAT for deliveries within Germany. EU business customers with a valid VAT ID: tax-exempt intra-community supply (reverse charge).
Shipped from our EU warehouse — no import handling or customs within the EU. Binding quote within one business day.
Manufacturer figures (“up to”). Actual performance depends on platform, firmware and workload.
Why PM9D3a
Gen5 performance in a data center form factor
The PM9D3a is Samsung's PCIe 5.0 data center platform — designed for high density, predictable latency and 24/7 operation.
PCIe 5.0 x4
Twice the per-lane bandwidth of PCIe 4.0. Ideal for I/O-hungry workloads such as databases, analytics and AI data pipelines.
EDSFF E1.S, 9.5 mm
The compact ruler form factor fits far more NVMe drives per rack unit than classic 2.5" U.2 bays — with better cooling and hot-plug support.
Power-loss protection
Built-in protection keeps data in the write cache safe during power failures. A must for Ceph, databases and any environment with synchronous writes.
1 DWPD for 5 years
Read-intensive class with one full drive write per day — the right balance of price, capacity and endurance for most cloud workloads.
Technical specifications
Key specs of the Samsung PM9D3a in the 3.84 TB variant for E1.S slots. Need to check compatibility with your server? Get in touch — we verify it before you order.
- Part number
- MZTL63T8HFLT-00AW7
- Series
- Samsung PM9D3a
- Capacity
- 3.84 TB
- Interface
- PCIe 5.0 x4, NVMe 2.0
- Form factor
- EDSFF E1.S, 9.5 mm
- Sequential read
- up to 12,000 MB/s
- Sequential write
- up to 6,800 MB/s
- Random read (4K)
- up to 1,700K IOPS
- Random write (4K)
- up to 250K IOPS
- Endurance
- 1 DWPD for 5 years
- Power-loss protection
- Yes
- Standard
- OCP Datacenter NVMe SSD 2.5
- Price
- €3,590 net per unit
- Availability
- In stock in the EU
Get an instant quote
Tell us the quantity and delivery country — we check stock and send you a binding quote right away.
- Stocked in our EU warehouse
- Binding quote within one business day
- Non-binding request — no commitment
Use cases
Built for demanding workloads
Ceph & software-defined storage
All-flash OSDs with PLP and Gen5 throughput for OpenStack Cinder, object storage and hyperconverged clusters.
Databases
Low latency and high random IOPS for PostgreSQL, MariaDB/Galera and OLTP systems.
AI & analytics
Fast loading of training data and checkpoints — your GPUs stop waiting on storage.
Virtualization & VDI
High VM density per host and short boot storms — ideal for private cloud compute nodes.
More than just drives
On request, clouditiv delivers the complete private cloud — servers, storage, networking and OpenStack, installed and ready to run.
Frequently asked questions
Didn't find your question? Our team is happy to advise on compatibility, quantities and lead times.
Get in touchSecure your PM9D3a
from EU stock
Enter your quantity, fill in the form — your binding quote arrives within one business day.
Plus 19% VAT for deliveries within Germany. EU business customers with a valid VAT ID: tax-exempt intra-community supply (reverse charge).
No commitment · Quote within one business day · Personal contact
